AFCI vs. GFCI: The Difference That Protects Your Family
Quick Answer: A GFCI (ground-fault circuit interrupter) protects people from shock by cutting power the instant current leaks off its intended path, which is why it lives near water. An AFCI (arc-fault circuit interrupter) protects the building from fire by cutting power when it detects the erratic signature of electrical arcing inside damaged or loose wiring. Many devices now combine both.
The two acronyms sound like twins, and they even share a slot in the panel, but they were built to stop entirely different disasters. A GFCI keeps a person from being electrocuted. An AFCI keeps your walls from catching fire. Mixing them up, or worse, swapping one out for a plain breaker, leaves a real gap in the protection your home is supposed to have.
Shock Versus Fire: The Real Split
Before you can decide where each device belongs, it helps to know what each one is actually watching for. They are not two flavors of the same safety feature. They answer two separate questions.
A GFCI answers: Is electricity escaping the circuit and possibly running through a person? Electricity wants to return to its source through the neutral wire. If some of it finds a shortcut instead, say, through a hand touching a live part and a wet sink, that path is called a ground fault. Even a small amount of current through the body can stop a heart. The GFCI exists to catch that leak in a fraction of a second, long before the shock turns lethal.
An AFCI answers a different question: is the wiring itself sparking where it should not? Inside a wall, a nail nicks a cable, a screw terminal works loose over years of thermal expansion, or a cord gets crushed under furniture. Electricity jumps the tiny gap, and that jump is an arc. Arcs run hot enough to ignite wood framing and insulation. The AFCI listens for that behavior and shuts the circuit down before a fire starts.
So one protects the human standing at the outlet, and the other protects the structure hidden behind the drywall. That distinction drives everything about where they go.
How A GFCI Senses Trouble
A GFCI watches the balance between two wires. In a healthy circuit, every bit of current that flows out on the hot wire returns on the neutral wire, and the two match almost perfectly.
The imbalance it hunts for: The device compares those two currents continuously. When even a small mismatch appears, meaning some current is leaving the circuit through an unintended path, it reads that as a ground fault and opens the circuit fast. The threshold is small on purpose. It is set low enough to react before current at that level could seriously harm a person, which is a far tinier leak than a standard breaker would ever notice. A regular breaker only trips on a large overload or a dead short, so it would let a lethal leak pass unbothered.
That sensitivity is exactly why GFCIs guard the spots where water and electricity meet.
Where GFCIs Are Expected
The pattern follows moisture and grounded surfaces. Requirements vary by jurisdiction and by when a home was built, so treat the following as the general logic rather than a rulebook, and confirm specifics for your own home with a licensed electrician.
GFCI protection is commonly expected in:
- Kitchens, especially receptacles serving countertops near the sink
- Bathrooms, where bare feet, wet hands, and grounded plumbing all meet
- Garages and unfinished basements, which sit on grounded concrete
- Outdoors, including patio, deck, and exterior receptacles exposed to rain
- Laundry areas, near the sink and the appliances
- Anywhere close to a water source, from a wet bar to a utility sink
The common thread is a place where a person could complete a circuit to ground through water or a grounded surface. That is the scenario a GFCI is designed to interrupt.
How An AFCI Reads An Arc
An arc has a messy electrical fingerprint. A normal load, a lamp or a toaster, draws current in a smooth, predictable rhythm. Arcing is jagged and erratic, full of the high-frequency noise that a spark throws off as it jumps a gap and restarts thousands of times a second.
Telling a dangerous arc from a harmless one: The catch is that some arcing is normal. A light switch arcs a little every time you flip it, and a brushed motor arcs at its commutator by design. An AFCI carries onboard electronics that analyze the current's pattern and try to distinguish the destructive series or parallel arc of a failing connection from the routine sparking of everyday switches and motors. It has to be smart enough to act on the dangerous signature while ignoring the benign one, which is a harder job than measuring a simple imbalance.
Because the danger it addresses, arcing inside fixed wiring, lives throughout the house, AFCI coverage reaches well beyond the wet rooms.
Where AFCIs Are Expected
AFCI protection tends to cover the living spaces where circuits run through walls behind furniture and belongings. In modern construction that commonly includes:
- Bedrooms, where this protection was first widely required
- Living rooms, family rooms, and dens
- Hallways and closets
- Dining rooms and many other habitable rooms
The reach has widened over successive updates to residential wiring practice, and newer homes carry it across most of the interior circuits. Older homes may have little or none, which is one reason a panel from decades ago behaves differently from a new one. Again, what applies to your address depends on local adoption and the age of the wiring, so verify rather than assume.
Devices That Do Both, And The Forms They Take
You do not always have to choose. A dual-function AFCI/GFCI device combines both protections in one unit, guarding people from shock and the structure from fire on the same circuit. In spaces where both hazards apply, that combination covers the whole picture.
Each type also comes in two physical forms:

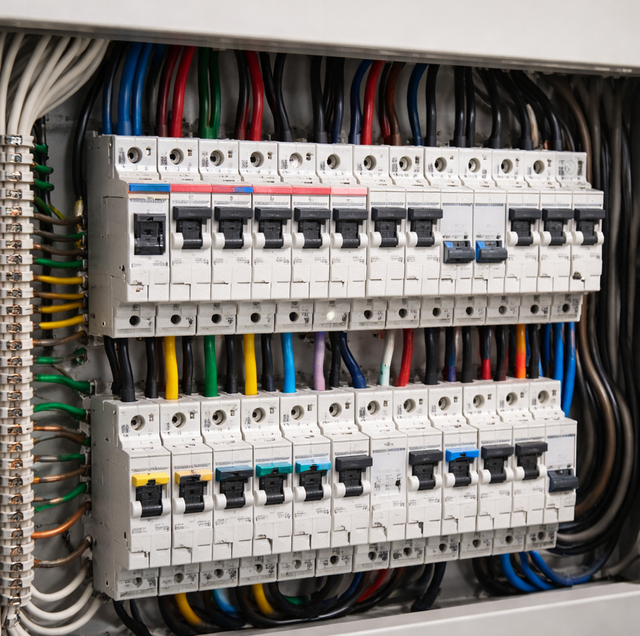

- Breakers that install in the panel and protect the entire circuit from that point onward, including every outlet and fixture on it.
- Receptacles that install at the outlet and protect that point and, when wired to do so, everything downstream of it.
The breaker version protects more of the run, while the receptacle version puts the test and reset buttons right where you can reach them. Panel work carries lethal voltage, so which form is appropriate and how to install it are jobs for a licensed electrician, not a project to attempt at the panel yourself.
Why Nuisance Trips Happen
A device that trips is doing its job, but not every trip means immediate danger. Sometimes the protection is reacting to a real fault, and sometimes to a quirk of the load.
A genuine trip points to an actual problem: moisture in an outdoor box, a failing appliance leaking current, or a deteriorating connection arcing in the wall. That trip is a warning worth respecting.
Other trips are the device being cautious. Certain motors and electronics generate electrical noise that can read like an arc. A refrigerator, a vacuum, or a power tool sometimes sets off a sensitive AFCI. A shared neutral, where two circuits were wired to return on one neutral wire, can also confuse a GFCI or AFCI, because the balance it measures no longer adds up the way the device expects.
The right response is not to give up on the protection. If a device trips repeatedly, the cause needs to be found. It might be a wiring correction, a device better matched to the circuit, or an appliance on its way out. What it should never be is a reason to remove the protection.
Testing, Resetting, And Leaving Them In Place
Both device types carry a test and a reset button and benefit from a monthly check. Pressing test should trip the device and cut power to the circuit, and pressing reset should restore it. If test does nothing, the device has already failed and no longer protects you.
Never replace a tripping AFCI or GFCI with a standard breaker or outlet to stop the nuisance, since that silences the alarm while leaving the shock or fire hazard in place. If you ever notice a burning smell, a scorched outlet, or a device that feels hot, cut power to that circuit and call a licensed electrician. Water and electricity together are lethal, and arcing behind a wall does not announce itself politely.
Frequently Asked Questions
Yes, and it is a common arrangement. An AFCI breaker in the panel can feed a circuit that also has a GFCI receptacle at a wet location downstream. The breaker covers the whole run for arc faults while the receptacle adds shock protection at that point. The two do not cancel each other out, though layering protections occasionally makes a nuisance trip harder to trace, which is why an electrician isolates the cause methodically.
No, and this surprises many people in older homes. A GFCI works by comparing the hot and neutral currents, not by relying on the ground wire, so it can protect an outlet on an old two-wire circuit that has no equipment ground at all. Codes often allow a GFCI as the accepted fix for replacing an ungrounded outlet, with the outlet labeled to note there is no equipment ground.
A series arc happens along a single conductor, such as at a loose terminal screw where the wire is barely making contact, and it draws relatively low current. A parallel arc jumps between two conductors, hot to neutral or hot to ground, and can draw much heavier current. AFCIs are designed to catch both kinds, but the series type is the sneaky one because its low current would never trip an ordinary breaker.
That usually points to that appliance, not the wiring. A motor with worn brushes, a failing power supply, or even a cheap LED driver can emit electrical noise or a small internal fault the AFCI reads as arcing. Try the appliance on a different circuit; if it trips there too, the appliance is the source and likely needs repair or replacement.
The buttons look identical, and both perform a trip-and-restore check, but they exercise different internal circuitry, so a GFCI test does not verify arc-fault detection and vice versa. On a dual-function device, the single test button is engineered to check both functions at once. Using the actual button beats a plug-in tester for AFCI models, since many plug-in testers cannot simulate a true arc.
The internal electronics age, and a device that fails its monthly test, will not reset, or trips with nothing plugged in, has reached the end of its service life. There is no single expiration stamp, but a unit that behaves erratically or shows any heat damage should be swapped for a fresh device of the same protective type. Treat a failed self-test as a definite replacement, not a maybe.
